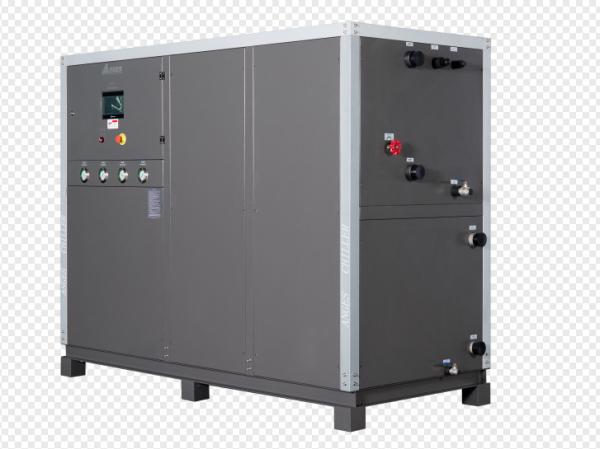

    3ph/380v/50hz Power Supply 15HP Air Cooled Scroll Chiller for Industrial Process Cooling

    Ask Lasest Price
    Brand Name : ANGES
    Model Number : 15hp
    Payment Terms : L/C, T/T
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    3ph/380v/50hz Power Supply 15HP Air Cooled Scroll Chiller for Industrial Process Cooling

    Technical Parameter of Air-cooled scrolled Type Chiller

    Model

    Item

    ACK-15
    Nominal cooling capacityKcal/h38012
    kw46.2
    Input powerkw15.06
    Power supply3PH~380V/50HZ
    RefrigerantTypeR22
    Type of controlExpansion valve
    CompressorTypeHermetic scroll type
    Power (kw)12.46
    CondenserType

    Finned copper tube+low noise outer

    rotor fan

    Power(kw)1.1
    Cooling air flow(m3 /h)15000
    EvaporatortypeShell and tube
    Chilled water flow(m3 /h)7.97
    Tank volume(L)145
    Inlet/outlet pipe chiller(inch)2
    Water pumpPower(kw)1.5
    Lift(m)20
    Safety protectioncompressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
    Net weightkg850
    Dimensionmm1850*990*1680

    Note: 1. Nominal cooling capacity is according to:

    Inlet chilled fluid temperature: 17℃, Outlet chilled fluid temperature: 12℃

    Inlet cooling air temperature: 30℃,Outlet cooling air temperature: 35℃

    2. Working Range:

    The temperature range of chilled fluid is from 5℃ to 35℃;

    Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

    It is better to run the chiller while the ambient temperature at or below 35℃.

    We reserve the right to modify the above dimensions or parameters without further notice.


    Configuration table for Air-cooled scrolled Type Chiller

    ItemMain PartsBrandOrigin
    1CompressorDanfossDenmark
    2CondenserANGESChina
    3EvaporatorANGESChina
    4Drying FilterEmersonUSA
    5Controller PCBPunpChina
    6Electric ComponentsSchneiderFrance
    7Pressure ControllerFenshengChina
    8Oil Pressure GaugeJiunaiChina
    9Water PumpMinamotoChina
    10FanMAERChina
