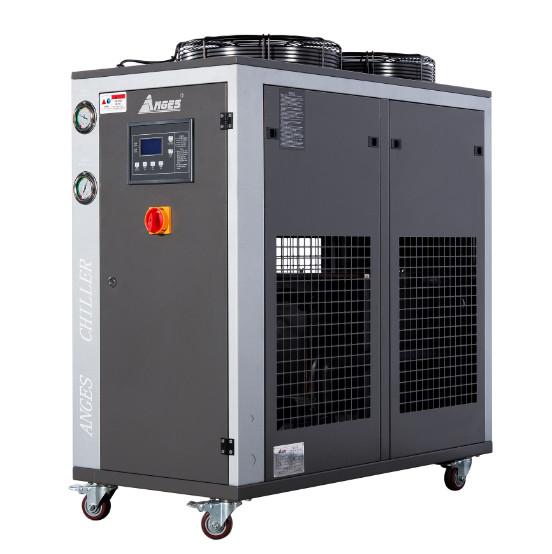

    10hp Industrial Chiller Integrated System Hermetic Scroll Type

    Ask Lasest Price
    Brand Name : ANGES
    Model Number : 10hp
    Payment Terms : L/C, T/T
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    10hp Industrial Chiller Integrated System Hermetic Scroll Type

    Model

    Item

    AC-10(D)
    Nominal cooling capacityKcal/h25886
    kw29
    Input powerkw11.22
    Power supply3PH~380V/50HZ
    RefrigerantTypeR22
    Type of controlExpansion valve
    CompressorTypeHermetic scroll type
    Power (kw)8.8
    CondenserType

    Finned copper tube+low noise outer

    rotor fan

    Power(kw)0.92
    Cooling air flow(m3 /h)10000
    EvaporatorTypeWater tank with coil
    Chilled water flow(m3 /h)5
    Tank volume(L)200
    Inlet/outlet pipe chiller(inch)1-1/2
    Water pumpPower(KW)1.5
    Lift(m)20
    Safety protectioncompressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
    Net weightkg450
    Dimensionmm1530*780*1630

    Note: 1. Nominal cooling capacity is according to:

    Inlet chilled fluid temperature: 17℃, Outlet chilled fluid temperature: 12℃

    Inlet cooling air temperature: 30℃,Outlet cooling air temperature: 35℃

    2. Working Range:

    The temperature range of chilled fluid is from 5℃ to 35℃;

    Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

    It is better to run the chiller while the ambient temperature at or below 35℃.

    We reserve the right to modify the above dimensions or parameters without further notice.
