    High-Performance Portable Water Chiller with 403kw Cooling Capacity for Industrial

    Ask Lasest Price
    Brand Name : ANGES
    Model Number : 120hp
    Payment Terms : L/C, T/T
    Delivery Time : 30 days
    • Product Details
    • Company Profile

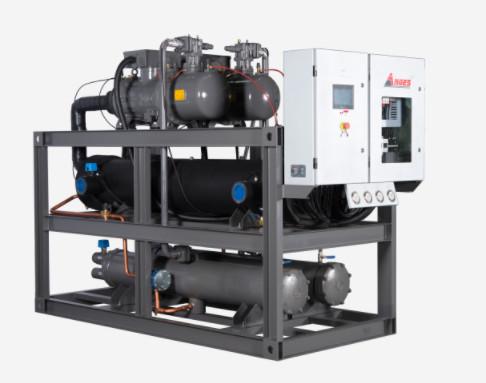

    High-Performance Portable Water Chiller with 403kw Cooling Capacity for Industrial

    High-Performance Portable Water Chiller with 403kw Cooling Capacity for IndustrialShenzhen Anges Machinery Co., Ltd

    Technical Parameter of Water-Cooled Screw Type Chiller

    Model

    Item

    AGS-120WDH
    nominal cooling capacitykcal/h346580
    kw403
    input powerkw85.8
    max running currentA195.5
    power supply3PH-380V-50HZ
    refrigeranttypeR22
    type of controlexpansion valve
    compressortypesemi-hermetic screw
    Power(kw)42.9×2
    start-up modeY-△
    capacity control0-25-50-75-100
    evaporatortypeshell and tube
    chilled fluid flow (m3/h)69.3
    pipe diameter (inch)5
    condensertypeshell and tube
    cooling water flow (m3/h)84
    pipe diameter (inch)5
    safety protectioncompressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection.
    dimensionmm3850*765*1750
    net weightkg2250
    running weightkg2550

    Note: 1.Nominal cooling capacity is according to:

    Inlet chilled fluid temperature: 17℃; Outlet chilled fluid temperature: 12℃

    Inlet cooling water temperature: 30℃; Outlet cooling water temperature: 35℃

    2. Working Range:

    The temperature range of chilled fluid is from 5℃ to 35℃;

    Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

    The temperature range of cooling water is from 18℃ to 37℃;

    Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃.

    We reserve the right to modify the above dimensions or parameters without further notice.


    Shenzhen Anges Machinery Co., Ltd

    Configuration table for Water-cooled Screw Type Chiller

    ItemMain PartsBrandRemark
    1Semi-hermetic CompressorHanbellChina
    2Expansion ValveEmersonUSA
    3CondenserAngesChina
    4EvaporatorAngesChina
    6Solenoid ValveEmersonUSA
    7Drying FilterEmersonUSA
    8Oil Pressure Gauge (High&Low)JiunaiChina
    9Touch ScreenWeinviewChina
    10PLC ControllerSiemensGermany
    11Electrical componentsSchneiderFrance
