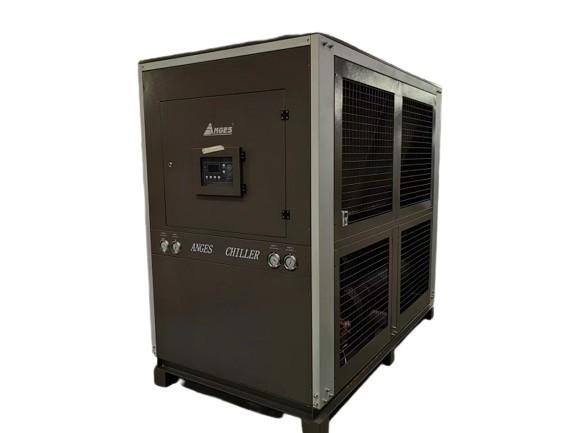

6ton Water Chiller 6hp Central Water Chiller Water Cooled Scroll
Chiller Industrial Water Chiller Cooling System
About the portable chiller and central chiller
The portable chiller contains scroll chiller compressor
refrigeration circuit, water tank and the pump and all necessary
components. It can work after connecting the production lines with
water pipes.
The water chiller cooling capacity is from 3kw -180kw, can
accurately control the process temperature and shorten the cycle,
increase the product quality and improve the production efficiency.
Specification for chilled water system
Model | AWK-6 |
| nominal cooling capacity | Kcal/h | 16340 |
| kw | 19 |
| input power | kw | 4.65 |
| power supply | 3PH~380V/50HZ |
| refrigerant | type | R22 |
| type of control | Expansion valve |
| compressor | type | Hermetic scroll type |
| Power (kw) | 3.9 |
| condenser | type | Shell and tube |
| Cooling water flow(m3/h) | 3.9 |
| Inlet/outlet pipe caliber(inch) | 1-1/2 |
| evaporator | type | Shell and tube |
| Chilled water flow(m3/h) | 3.3 |
| Tank volume(L) | 60 |
| Inlet/outlet pipe chiller(inch) | 1 |
| Water pump | Power(KW) | 0.75 |
| Lift(m) | 20 |
| Safety protection | compressor over temperature, over-current protection, high and low
pressure protection, over -temperature protection ,flow switch
protection,phase sequence or missing phase protection,exhaust
overheating protection |
| net weight | kg | 210 |
| Dimension | mm | 1250*600*120 |
Featurers for portable water cooled scroll chiller
1. This 6Tr water chiller use famous brand scroll compressor.Scroll
compressor has the advantages of small volume, low noise, light
weight, small vibration, low energy consumption, long life and
reliable operation.
2. High efficient shell and tube type evaporator,built-in stainless
steel 304 water tank,easy to install and use.
3. The shell and tube condenser is low condensing temperature, good
cooling effect, suitable for medium and large refrigeration
system.It can run easily even in hot weather.
4. This industrial water-cooled chiller equipped with figure
intellectualized temperature controls, which can accurately measure
and control water temperature within the range of 5C-30C.
5. This chiller protection system includeds compressor overheat
protection, high/low pressure protection, phase missing/sequence
protection, flow rate protection, anti-frozen protection.
Water chiller service from manufacturer
1. All the chillers are provided with 12 months free maintenance
service.
2. Chiller maintenance service outside the warranty period,
life-long tracking maintenance, cost price to provide equipment
parts.
3. Provide technical explanation, chiller debugging support,
technical training and chiller maintenance guidance.
4. If necessary, after-sales engineers can be on-site service
confirmed by both parties through communication .In some areas,
local dealers can provide fast and convenient service.
5. Provide the air chiller and water chiller required parts quickly
to ensure the normal use of customers.If necessary, part of the
wearing parts can be provided for backup after confirmation by both
parties.
