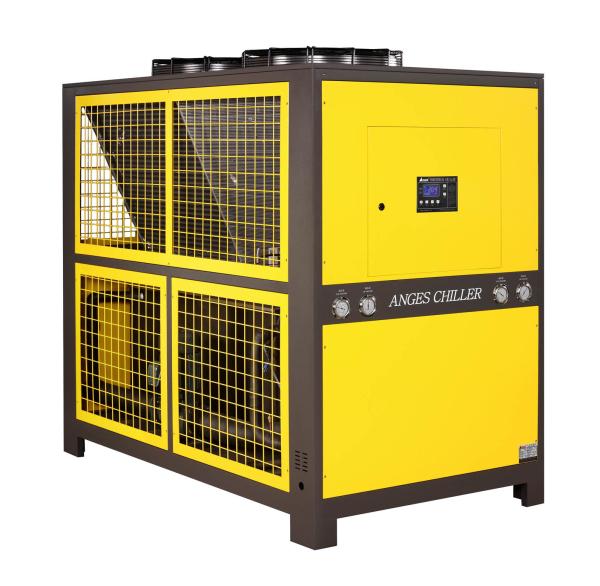

36kw Portable Chiller Unit 12hp Industrial Laser Chiller

Ask Lasest Price
Brand Name :	ANGES
Model Number :	12hp
Payment Terms :	T/T, L/C
Delivery Time :	15 days

Add to Cart

Product Details
Company Profile

36kw Portable Chiller Unit 12hp Industrial Laser Chiller

Laser Chiller Portable Chiller Laser Welding Machine Chiller Industrial Laser Cooling Chiller 36kw Laser Cutting Chiller

What is a laser chiller?

Laser chiller is mainly used in laser marking machine, laser engraving machine, laser welding machine, laser jet coding machine, laser cutting machine and other laser processing equipment.

The laser source, beam controller and electric control cabinet in the laser system may require additional cooling. The temperature of cold water is usually between 15 and 22℃, and the accuracy of chilled water is usually ±1℃ or ±2℃. Some equipment may require ±0.5℃,Other parts of the equipment on cold water conductivity, corrosion resistance and other requirements.

Laser chiller machine specification

Item		AL-12W
Nominal cooling capacity	Kcal/h	31476
	kw	36.6
Input power	kw	11.62
Power supply	3PH~380V/50HZ
Refrigerant	Type	R22
	Type of control	Expansion valve
Compressor	Type	Hermetic scroll type
	Power (kw)	9.2
Condenser	Type	Finned copper tube+low noise outer rotor fan
	Power(kw)	0.92
	Cooling air flow	12000
Evaporator	Type	Water tank with coil
	Chilled water flow	6.31
	Tank volume(L)	200
	Inlet/outlet pipe chiller(inch)	2
Water pump	Power(KW)	1.5
	Lift(m)	25
Safety protection	compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
Net weight	kg	530
Dimension	mm	15307801630

Main components of laser cooling chiller

Laser chiller is mainly composed of compressor, condenser, evaporator, throttling device, water tank, water pump and so on.

Chiller application

Laser chiller provides constant temperature, constant current, constant pressure environment in medical, electroplating, plastic, numerical control and other industries.

Featurers for portable chiller

Exquisite design, easy installation and operation
The refrigeration system adopts international brand components, temperature control accuracy is ±0.1℃.
Advanced fan motor, large air volume, low noise, long service life.
Chilled water circulation system adopts stainless steel pump, high head, low noise, small vibration and constant flow.
The air cooled laser chiller is without additional cooling tower and water pump, easier operation and maintenance.

Benefits of an laser water chiller

The laser chiller cooling provide constant and precise cold water to the laser process temperature.
The water chiller precise temperature control can improve the machining accuracy of laser machine and productivity for laser process.
Air cooled laser chiller design is very compact and made of high-grade materials. It has stronger durability and longer service life.
Chillers can decrease equipment depreciation and degradation to cut down on operating expenditures.

Water chiller service from manufacturer

All the chillers are provided with 12 months free maintenance service.
Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.
If necessary, after-sales engineers can be on-site service confirmed by both parties through communication .In some areas, local dealers can provide fast and convenient service.
Provide the air chiller and water chiller required parts quickly to ensure the normal use of customers.If necessary, part of the wearing parts can be provided for backup after confirmation by both parties.
Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
