80 Ton Chillers And Cooling Towers 50Hz 380 Volt Three Phase

    Buy cheap 80 Ton Chillers And Cooling Towers 50Hz 380 Volt Three Phase from wholesalers

    Buy cheap 80 Ton Chillers And Cooling Towers 50Hz 380 Volt Three Phase from wholesalers
    • Buy cheap 80 Ton Chillers And Cooling Towers 50Hz 380 Volt Three Phase from wholesalers

    80 Ton Chillers And Cooling Towers 50Hz 380 Volt Three Phase

    Ask Lasest Price
    Brand Name : ANGES
    Model Number : 80ton
    Payment Terms : T/T
    Delivery Time : 15 days
    • Product Details
    • Company Profile

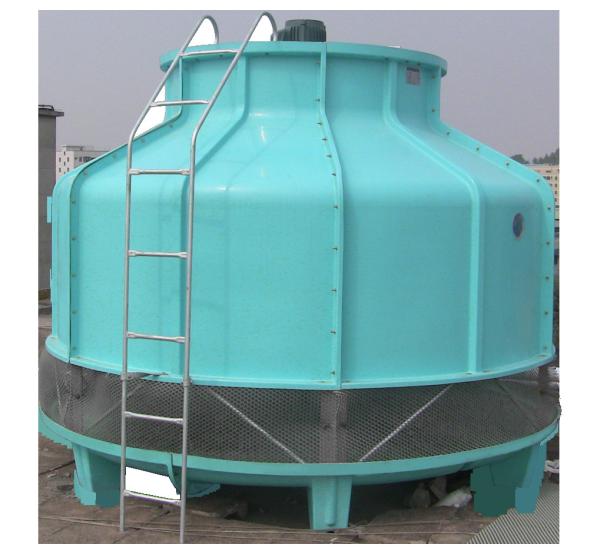

    80 Ton Chillers And Cooling Towers 50Hz 380 Volt Three Phase

    80tons cooling tower technical parameters

    ModelSTG-80

    Basic parameter

    TypeCounter current circular cooling tower
    Nominal flow62.64m3/h
    Inlet/outlet temperature37℃/32℃
    Dry-bulb temperature31.5℃
    Wet-bulb temperature27℃
    Cooling capacity313200kcal/h
    Noise (dB(A))62dB(A)
    Power380V/3P/50Hz
    Water qualityPH=6to 8
    N.W/G.W260kg/1280kg
    FanFan typeAxial Flow
    Cooling air flow(m3/h)37584m3/h
    Rotation speed(r/min)710r/min
    Diameter1180 mm
    Quantity4 pieces/set
    Electronic boxWater proof type
    Power1.5kw
    Start-up modeDirect start

    Size

    Height × diameter(H×φ)2800×2100mm
    Inlet pipe caliber100mm
    Outlet pipe caliber100mm
    Full outlet/drain off pipe caliber25mm/25mm
    water supply pipe caliber20mm
    MaterialSprinklerP.V.C-U
    CasingFiberglass
    Water basin
    FanA.B.S
    Electronic boxWater proof type
    In -fillP.V.C.
    ShelfHot-dip galvanized steel

    Product Description
    • WORKING PRINCIPLE


    1. Cooling tower is the use of water as a medium, from the water circulation system to absorb heat into the atmosphere, is a device to reduce the temperature of the water.

    2. Cooling tower uses the water and air flow contact after cold and heat exchange to produce steam, volatile heat to achieve the purpose of evaporative heat dissipation, heat transfer and radiation principle to disperse the industrial or refrigeration air conditioning generated in the waste heat to reduce the water temperature of the evaporative heat dissipation device, in order to ensure the normal operation of the system.


    • Advantages


    1. Stable temperature drop: Since the tower adopts the principle of injection for cooling, there is no packing blockage and fan damage. The advanced water suspension bearing technology ensures that the automatic rotation atomization device of the fan driven by water injection rotates flexibly and reliably, and ensures the long-term stable operation of the tower.

    2. No special requirements for water quality, strong applicability: due to the use of the company's patented technology design, atomizing nozzle diameter of more than 10, not easy to plug, nozzle flow speed is large, difficult to scale, no special requirements for water quality. There is no filler, not easy to scale, reduce the possibility of clogging.

    3. Quiet design, low noise: no motor, reducer and other rotating mechanical equipment, eliminate the disturbing noise of electric fan

    • Main Features

    1. Cooling tower is mainly used for cooling in air conditioning system, frozen series, injection molding, leather, foam, power generation, steam turbine, aluminum processing, air compressors, industrial cooling water and other fields.

    2. The function of the cooling tower is to carry out heat exchange between the cooling water with waste heat in the tower and the air, so that the waste heat is transmitted to the air and dispersed into the atmosphere.

    3. Closed circuit cooling tower have the Attractive shape: the Small dimension of shape, the low height of the tower, light weight of tower, and multiform layout in covering the area.
