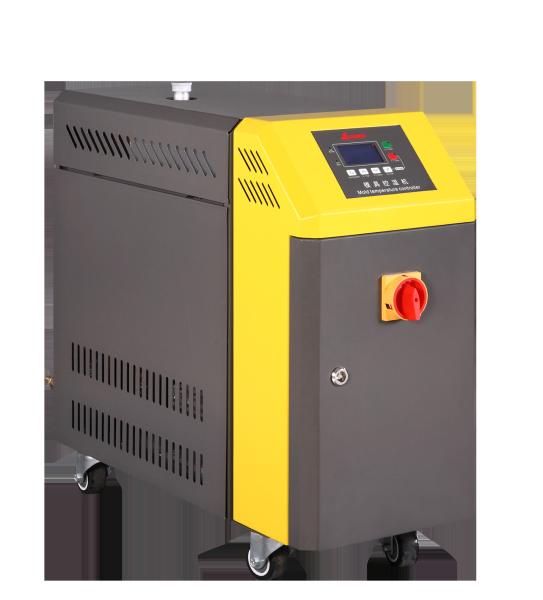

    Industrial Mold Temperature Machine

    Water Type Mold Temperature Controller Industrial Temperature Controller Temperature Control Machine Mold Temp Controll​

    The mold temperature controller is mainly used for mold heating and keeps a constant temperature, as well as the fields with the same requirements.

    Mould Temperature Controller is available in water and oil.The water type mold temperature controller water temperature can be maintained between 40 – 120°C and oil type temperature can be 40-300°C.

    ItemAM-9W
    Heat transfer mediumWater
    Max.Temperature120
    Heating powerKW9
    Power3PH-380V-50HZ
    Pump powerHP1
    Pump max.flow rateL/min56
    Pump max.pressurebar3.8
    Medium volumeL3.2
    Cooling methodDirect cooling
    Mould Coolinglnch3/8"*2
    Inlet/outlet sizelnch3/4"/3/4"
    Dimension(mm)H645
    W373
    D745
    Net weightkg55
    Advantages of Mould Temperature Controller
    1. With automatic shutdown cooling protection function etc.

    2. With temperature detecting indication of oil return.

    3. Multi-machine parallel is customized.

    4. Sufficient safety protection and visible alarm. easy for maintenance.

    5. Using isolated electronic control box, to extend the lives of electric appliances.

    Features of Water type mold temperature controller

    1. Adopted microcomputer controller ,easy to operate.

    2. Main pipes are made of uni-body stainless steel. with uniform heating and low-loss.

    3. Equipped with 304 stainless steel high temperature sluice valve. with good heat resistant performance.

    4. With sufficient safety production and alarming system.

    5. Optional for high temperature magnetic pump with stable performance and no leakage.
