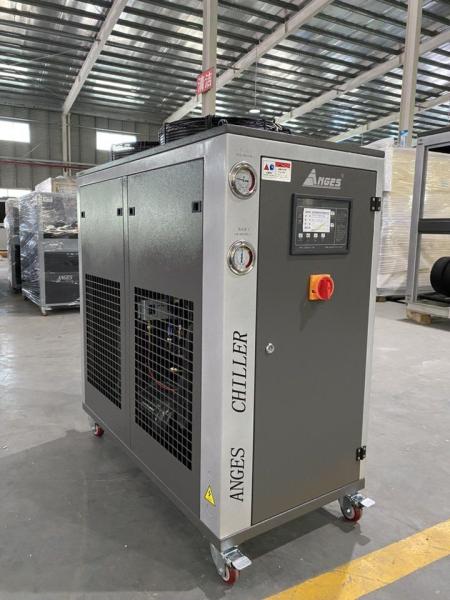

5hp Portable Water Chiller Air Cooled Cooler Chiller Air Cooling
With Small Hermetic Scroll Compressor
Chiller which is also called water chiller units, industrial
chiller, cooling system, cooling machine, cooling equipment, it
offers chilled water with temperature from -40°C to +35°C and can
be used for a variety of industrial and commercial applications.
Anges Chiller offers a variety of chillers for a wide range of industries:
plastic extrusion lines, injection mold cooling, bottle blow
cooling, beverage filling cooling, etc. Two different types of chiller can be used, air-cooled and
water-cooled. Our industrial chiller adopts world famous brand components to
ensure stable quality, high efficiency, energy saving and long
service life.
Specification for Small Water Cooled Chiller System
Model | HBW-05 |
| nominal cooling capacity | Kcal/h | 14388 |
| kw | 16.7 |
| input power | kw | 3.98 |
| power supply | 3PH~380V/50HZ |
| refrigerant | type | R22 |
| type of control | Capillary |
| compressor | type | Hermetic scroll type |
| Power (kw) | 3.43 |
| condenser | type | Shell and tube |
| Cooling water flow(m3/h) | 3.5 |
| Inlet/outlet pipe caliber(inch) | 1 1/2" |
| evaporator | type | Shell and tube |
| Chilled water flow(m3/h) | 2.9 |
| Tank volume(L) | 60 |
| Inlet/outlet pipe chiller(inch) | 1 |
| Water pump | Power(KW) | 0.55 |
| flow rate(m3/h) | 4 |
| Lift(m) | 20 |
| Safety protection | compressor over temperature, over-current protection, high and low
pressure protection, over -temperature protection ,flow switch
protection,phase sequence or missing phase protection,exhaust
overheating protection |
| net weight | kg | 150 |
| Running weight | kg | 200 |
| Dimension | mm | 1000*520*1100 |
Featurers for small water cooled scroll chiller
1. Famous brand belt compressor
Adopt famous brand compressor, low noise, low vibration, high
efficiency and energy saving.
2. Evaporator
Shell and tube evaporator adopts high precision inner threaded
copper tube design, which has larger heat transfer area, higher
efficiency and maximum system performance.
Step 3: Water pump
Advanced stainless steel water pump, large working range, low
noise, reliable performance, no leakage, maintenance free.
4. Microcomputer LCD controller
Cold water outlet and set temperature visual display, easy to
operate, water temperature control in the range of 3℃~ 50℃.
Chiller daily maintenance
1. Before starting the compressor, check whether the pump rotates
normally and ensure that the refrigerant in the pipeline system is
fully filled and the circulation is normal.
2. To prevent the chiller from freezing, drain the refrigerant
completely when it is not running for a long time. The automatic
exhaust valve is installed at the highest point of the chilled
water circulation pipe, and the drainage valve is installed at the
lowest point of the chilled water circulation pipe.
3. The machine should be maintained by special personnel. According
to the severity of the environment, the condenser of the air
cooling unit should be cleaned once every 25 days, and the cooling
tower pipe of the water cooling unit should be cleaned once every
2-3 months to ensure the heat dissipation effect.
4. The water quality shall meet the requirements in Appendix D of
GB/T184330.1-2007. The pH of water should be between 6.5 and 8.0.
The water should not contain Cl-, NH+, S² and other ions that are
corrosive to copper. Install a filter in the inlet pipe and clean
it regularly.
