    Glycol Water Cooled Chiller Modular Chiller Plant For Film Blowing Machine

    Ask Lasest Price
    Brand Name : ANGES
    Model Number : 50HP
    Payment Terms : T/T, L/C, T/T, L/C
    Delivery Time : 25 days
    • Product Details
    • Company Profile

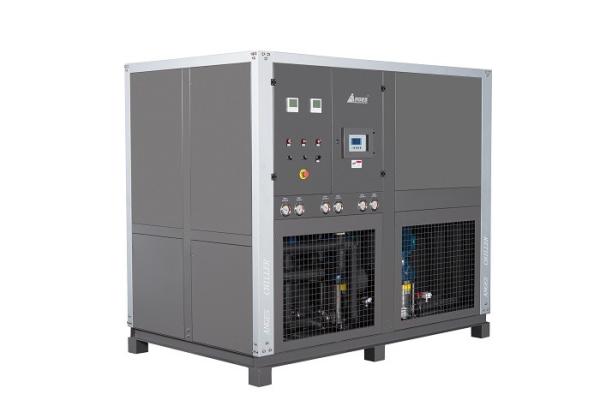

    Glycol Water Cooled Chiller Modular Chiller Plant For Film Blowing Machine

    50ton industrial water chiller machine Portable Chiller Water Cooled Scroll Chiller 50HP Water Cooled Industrial Chiller Water Chilling Plant​


    Water cooled chiller


    Anges chiller is divided into two types: Air-cooled chiller and Water-cooled chiller.

    Water chiller is divided into a low-temperature chiller and a normal-temperature chiller in temperature control.

    The normal temperature is generally controlled the water within the range of 0 to 35 degrees.

    The temperature control of the cryostat is generally in the range of 0 degrees to minus 30 degrees.


    Specification for chilled water system


    Model

    Item

    AWK-50(F)
    nominal cooling capacityKcal/h138632
    kw161.2
    input powerkw35.2
    power supply3PH~380V/50HZ
    refrigeranttypeR22
    type of controlExpansion valve
    compressortypeHermetic scroll type
    Power (kw)31.2
    condensertypeShell and tube
    Cooling water flow(m3/h)33.4
    Inlet/outlet pipe caliber(inch)3
    evaporatortypeShell and tube
    Chilled water flow(m3/h)27.8
    Tank volume(L)480
    Inlet/outlet pipe chiller(inch)3
    Water pumpPower(KW)4
    Lift(m)22
    Safety protectioncompressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
    net weightkg1700
    Dimensionmm2400*1100*1980
    Featurers for portable water cooled scroll chiller

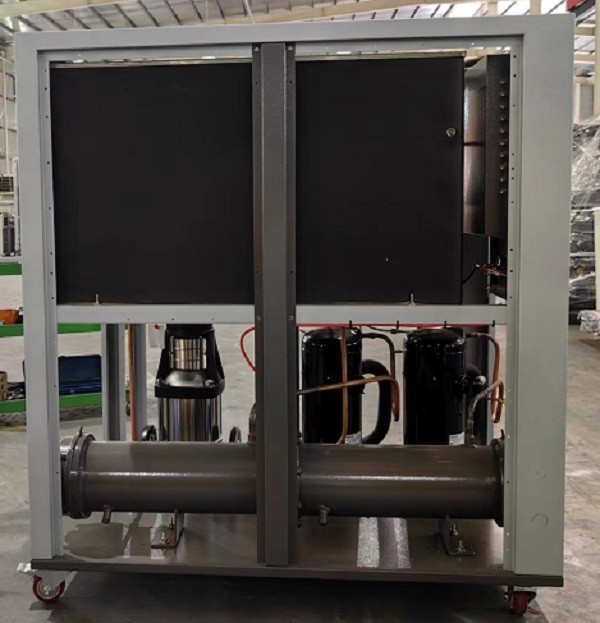

    1. This 50Tr water chiller use four refrigerant circuits with 4 units famous brand scroll compressor.Scroll compressor has the advantages of small volume, low noise, light weight, small vibration, low energy consumption, long life and reliable operation.
    2. This50ton water cooled chiller can be a central chiller to cool several processes,easy installation and operation with lower cost.
    3. High efficient shell and tube type evaporator,built-in stainless steel 304 water tank,easy to install and use.
    4. The shell and tube condenser is low condensing temperature, good cooling effect, suitable for medium and large refrigeration system.It can run easily even in hot weather.
    5. This industrial water-cooled chiller equipped with figure intellectualized temperature controls, which can accurately measure and control water temperature within the range of 5C-35C.
    6. This chiller protection system includeds compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection.

    Benefits of an industrial water chiller

    1. The ability to maintain constant and precise control of the process temperature.
    2. The cooling fluid can be delivered directly to the application heat source to increased production speed and ensure efficiency production
    3. Accurate temperature control capability, to ensure the highest quality final products.
    4. Water chiller systems prevent damage to heat-sensitive industrial components preventing undesirable repair downtime that might slow or even halt production altogether.

    Chiller Unit Features and Advantages:

    1. Cooling Capacity ranges from 2 Ton to 30 Ton
    2. Temperature control range from 5°C to 35°C
    3. Panasonic/Danfoss/ HANBELL/Copeland branded Scroll and screw-type compressors
    4. Water-cooled condenser with cooling tower
    5. Compact design, energy saving, easy maintenance
    6. Warranty up to 12 months after purchase
