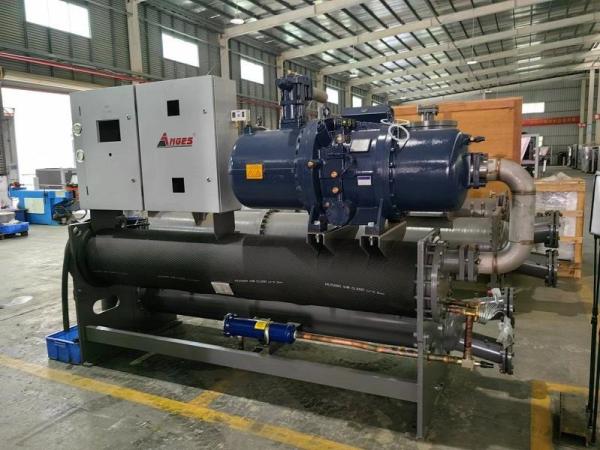

50HP Integrated Screw Type Water Chiller
50ton Screw Chiller 50ton Water Chiller for
injection/extruder/blowing industry
The chiller is an integrated industrial cooling unit consisting of
a chiller, water pump, water tank and control panel.The integrated water cooling chiller is simple to install and easy
to operate, which greatly reduces the installation cost.
Item | AGS-050WSHI |
| nominal cooling capacity | kcal/h | 161422 |
| kw | 187.7 |
| input power | kw | 49 |
| max running current | A | 110.5 |
| power supply | 3PH-380V-50HZ |
| refrigerant | type | R22 |
| type of control | expansion valve |
| compressor | type | semi-hermetic screw |
| Power(kw) | 39 |
| start-up mode | Y-△ |
| capacity control | 0-33-66-100 |
| evaporator | type | shell and tube |
| chilled fluid flow (m3/h) | 32.3 |
| pipe diameter (inch) | 3 |
| condenser | type | shell and tube |
| cooling water flow (m3/h) | 40.3 |
| pipe diameter (inch) | 3” |
| safety protection | compressor over temperature protection, over load protection, high
and low pressure protection, flow switch protection, reversed and
lacking phase protection, anti-freezing protection,fusible
protection. |
| Tank | L | 1500 |
| External circulation pump | Power(kw) | 5.5 |
| Lift(m) | 24.5 |
| Internal circulation pump | Power(kw) | 4 |
| Lift(m) | 20 |
| dimension | mm | 3200*2000*1883 |
| net weight | kg | 1860 |
| running weight | kg | 3460 |
Featurers of water cooled screw refrigeration chiller
1. Adjustable water temperature: The output chilled water temperature of the water-cooled chiller
ranges from +5 ℃ to +30℃. Water temperature and flow rate can be
specified and regulated within the control range.
2. Stable performance: Angus package-type water-cooled screw chiller, using the original
famous brand semi-closed screw compressor, sufficient cooling
capacity, stable performance, good quality. Simple structure, less
moving parts, low failure rate, high safety factor, large cooling
capacity.
3. Power saving and energy saving: screw refrigerator capacity control can use four
(100%-75%-50%-25%) or three (100%-66%-33%) automatic adjustment
ability, according to the actual use of heat load effectively save
energy, so as to effectively save energy.
4. Long service life: shell and tube evaporator and condenser, simple welding
structure, strong structure, high quality, compact structure, long
service life and so on.
5. Simple installation and operation :120 tons screw compressor industrial chiller system, equipped
with famous brand water pump, large flow, high efficiency, durable.
Small size, convenient installation, simple operation.
Water chiller service from manufacturer
We are industrial chiller manufacturer, we could provide
online/video technical support, on-site service is available in
some areas.
Field service will be provided by our chiller dealers in Indonesia,
Chile, Thailand, Pure, Malaysia, Australia, UAE, Israel, Egypt,
etc.
1. All chiller units are provided with 1-year free maintenance
service.
2. Provide technical explanation, chiller debugging support,
technical training and chiller maintenance guidance.
3. If necessary, after-sales engineers can provide door-to-door
service, which shall be confirmed by both parties through
communication. In some areas, local dealers can provide quick and
convenient service.
4. Promptly provide accessories required by air cooler and water
cooler to ensure normal use by customers. If necessary, both
parties can provide part of the wearing parts for standby after
confirmation.
5. Out-of-warranty maintenance service for chiller, lifelong
tracking maintenance, equipment accessories at cost price.
